#RabbitHole: @okias@floss.social is doing a lot work to mainstream #sdm845 patches to the #linux kernel. During a meeting of Phosh.mobi e.V. members I learned that there seem to be not many testers for #Shift6mq #axolotl. I still had a broken Axolotl sitting on my desk…

• repaired the phone that originally had been bought as part of a #ShiftPhone8 deal
  • cleaning inside (residue from water contact)
  • new display (two lines of broken pixels)
  • new usb-c pcb (didn't charge, data broke during testing)
• learned about edl to recover if phone wouldn't boot to fastboot anymore (yes, really had that situation later )
• learned about the difference of fastboot and fastbootd mode
• learned about u-boot and the boot chain on the phone
• learned about dynamic partitions used in Android and how to use them from #linux
• learned about pmbootstrap
  • to build my own device images (mixture of existing axolotl and sdm845 to be compatible to the phone and the usage with u-boot and dynamic partitions)
  • changed pmbootstrap to build small (92M) boot image for boot_a/b partition
• tried to get more space for out of the phone for boot & root than provided by boot_a/b and system_a/b
  • resized userdata of Android
  • created two additional partitions for postmarketOS
• learned how to recover from kernel not booting without re-flashing
  • u-boot usb mass storage mode exports the mass storage of the phone over usb-c
  • phone connected to an aarch64 system (#Librem5 running #Mobian)
  • mounting encrypted partition, boot and what-else is needed
  • installing kernel packages via apk while in chroot on Librem5
• learned how to compile a kernel using ./envkernel.sh and pmbootstrap

Now I'm quite sure I can recover from any failure I will encounter while testing sdm845 kernels and I have the following setup on my Shift6mq:

• ShiftOS-L with small userdata partition in slot_b
  • applications for demoing the phone installed
  • work profile to contain closed source applications
• postmarketOS edge installed on partitions behind userdata
  • u-boot on rescue_a
  • 1GB pmOS_boot
  • 60GB pmOS_root
  • applications for demoing
  • multi-user: my testing user, demo user
  • everything except cameras work
• dual-boot possible on-the-go: enter fastboot (by holding vol-up at start), change slot, reboot

I put my notes on the postmarketOS wiki.

I started two merge requests:

• support audio configuration when started through u-boot in alsa
• add support for booting using u-boot and dynamic partitions to axolotl

I'll carry the phone at #clt2026 - Chemnitzer Linux Tage 2026 - on saturday 28th this month. I'll mostly be around the "Linux on Mobile" booth.

Follow-up to this note.

Dragan had asked me to do repeated power-cycle tests with different kernel versions using the patched dtb for #RockPro64 to make sure the kernel #oops wouldn't still be an issue.

I learned that cutting the power of the device could kill the #LPDDR4 #RAM. This is documented in the specification referenced on the RockPro64 wiki page for Micron LPDDR4 Mobile LPDDR4 Datasheet as stated on page 37 in Uncontrolled Power-Off:

An uncontrolled power-off sequence can occur a maximum of 400 times over the life of the device.

I never had heard about this before! Cutting power without shutdown can kill my RAM?

show dmesg and shutdown

To get all the debugging information I needed I wanted the system after booting to print dmesg to the serial console, wait a short time and then actually shutdown.

root:~# cat /root/bin/dmesg_and_shutdown.sh
#!/bin/bash
# a small script that outputs dmesg to serial
# console, waits 20 seconds and shuts down
dmesg > /dev/ttyS2
# show a message how to stop this script and wait 20 seconds
echo "Will shutdown in 20 seconds - to stop me call 'pkill dmesg_and_shut'" > /dev/ttyS2
sleep 20
echo "shutdown -h" > /dev/ttyS2
shutdown -h now
# a cronjob that runs after each boot
root:~# crontab -l
@reboot /root/bin/dmesg_and_shutdown.sh

powercycle the board

I took the time needed for a complete cycle of booting, showing dmesg, waiting and shutting down: well below 2 minutes.

To automate the power cycle I used an #esp8266 based power switch made by #Sonoff (Powr2) running ESP Easy (mega-20210503).

#ESPeasy offers a simple scripting language I used to powercycle after 120 seconds of being switched on:

On System#Boot do
 gpio,12,0
 gpio,13,1
endon

On button#button_state do
 if [blue_led#blue_led_state]=1
  gpio,13,0
  timerSet,1,2
 else
  gpio,13,1
  gpio,12,1
  timerSet,1,0
  timerSet,2,0
 endif
endon

On Rules#Timer=1 do
  gpio,12,0
  timerSet,2,1
endon

On Rules#Timer=2 do
 gpio,12,1
 timerSet,1,2
endon

Pressing the button on the Sonoff device toggles between:

• blue led off: timers disabled, relay on permanently
• blue led on: timers switch the relay off for 5 seconds, on for 120 seconds and then repeat

logging

minicom logged the serial output to a file.

Further down the #RabbitHole I went when looking at the resulting logfile…

Follow-up to this note

Meanwhile Dragans changes to the dtb file helped my testing setup to boot without eMMC. So I could test booting manually from scsi devices like on my production system.

Looking for some simple instructions on how-to do this failed and I put together the following information.

u-boot on #RockPro64 uses variables written to flash. The important ones for choosing a device/kernel to boot:

# this u-boot will look for scsi devices only
boot_targets=scsi
# it will scan the devices for
bootcmd=bootflow scan

Since I have a boot.scr in my /boot the bootmeth seems to be script. There's also the source of that file boot.cmd available and from there I extracted the commands to run on the u-boot console to start any kernel/initrd/dtb I could find on disk:

# initialize pci bus
pci enum
# show devices on pci
pci
# reset bus and scan for scsi devices
scsi reset
# get partition table
scsi part
# find boot files
ls scsi 0:1 /boot
# load armbian defaults
load scsi 0:1 0x800800 /boot/armbianEnv.txt
# replace the xyz on the following line with the
# filesize output by 'load' above
env import -t 0x800800 xyz
# write uuid of partition to variable partuuid
part uuid scsi 0:1 partuuid
# arguments passed to the kernel on boot
setenv bootargs "root=${rootdev} rootwait rootfstype=${rootfstype} ${consoleargs} consoleblank=0 loglevel=${verbosity} ubootpart=${partuuid} usb-storage.quirks=${usbstoragequirks} ${extraargs} ${extraboardargs}"
# look for available images, initrds and dtbs
ls scsi 0:1 /boot
# get the dtb directory, **uInitrd** and the vmlinuz
# from the output to use with the following 'load' commands
load scsi 0:1 0x02080000 /boot/
load scsi 0:1 0x06000000 /boot/
load scsi 0:1 0x01f00000 /boot//rockchip/rk3399-rockpro64.dtb
booti 0x02080000 0x06000000 0x01f00000

At this point I only needed to wait for the Pine64 sata ctrl to arrive to test the current kernel with the same ctrl used in my production system.

So I went back to the fork in the tunnels and took the other way down the #RabbitHole…

Follow-up to this note:

At one of the times the current #Armbian #linux kernel didn't crash, but booted on my #RockPro64 I installed #GotoSocial and yes: no more strange error messages running it. The only time I remember that I updated a linux kernel to make an application work.

Preparations to get the production system running with the newer kernel:

• in case of problems I'd need to know my way back to boot the old kernel: u-boot recap and learning
• test suspected problems with the #sata #pcie ctrl beforehand (get a second Pine64 sata ctrl for the test system)

Meanwhile Dragan had patched the device tree and asked to check on a few reboots whether this would make a difference or cause any regressions.

Further down the #RabbitHole the tunnel forks…

Follow-up to this note:

I decided to test whether #GotoSocial would work on the #RockPro64 using the current instead of the legacy #Armbian kernel before risking problems upgrading my production #yunohost.

I have a similar testing setup: old mechanical drives instead of SSDs, a different PCIe SATA controller, an additional eMMC.

The additional eMMC I need to boot from, because for some reason the PCIe SATA ctrl didn't work, when u-boot initializes the controller before the kernel.

Installing the current kernel on my testing setup I found it not working: no console on hdmi, no network. Forgot to install the newer dtb (device tree binary) as well.

With currrent kernel and dtb from #Armbian installed the system booted half of the times I switched it on. Asking around on the rock64 chat I met Dragan Simic who greatly helped me to get further down the #RabbitHole…

On my #yunohost I tried to update #gotosocial from 0.17.4~ynh1 to 0.18.1~ynh1 and the update failed.

GotoSocial just showed some cryptical error messages when started.

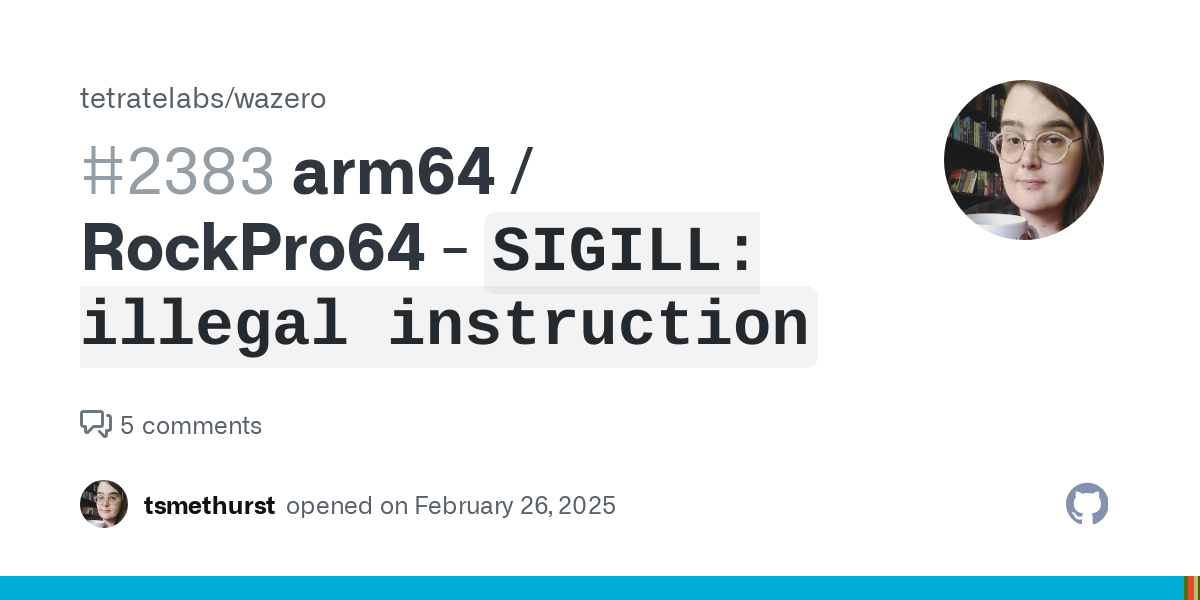

@dumpsterqueer@superseriousbusiness.org traced the problem back to a changed lib version used in the new GotoSocial version and the developer of the lib answered my #linux kernel would be too old.

The old #armbian legacy kernel is running, because … I don't remember.

I need a kernel update for my #rockpro64.

Down the #RabbitHole…
